USB Mini B Female Socket to 5-pin Terminal Block

Price:
Sale price £6.50
incl. VAT
excl. VAT
Stock:
Only 5 units left
Quantity:

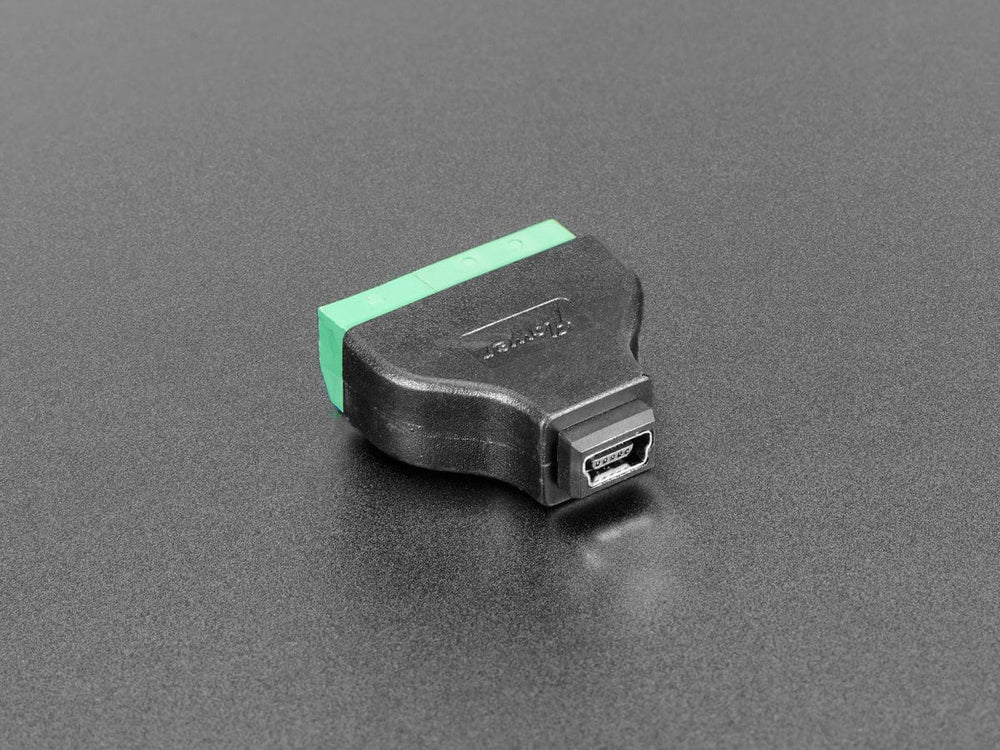

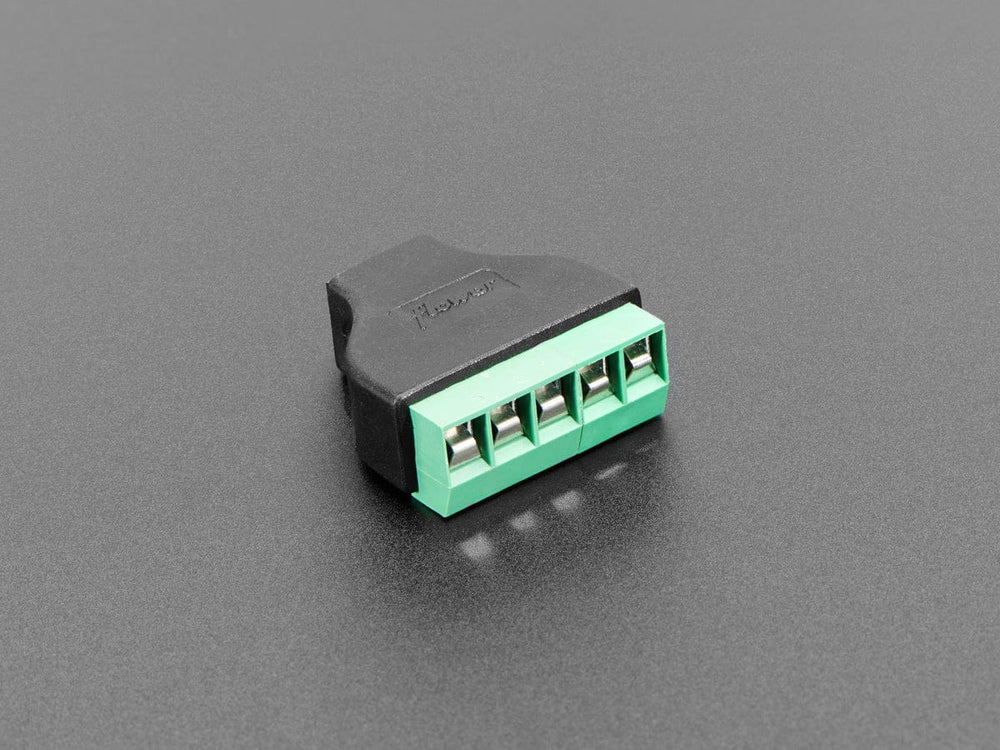

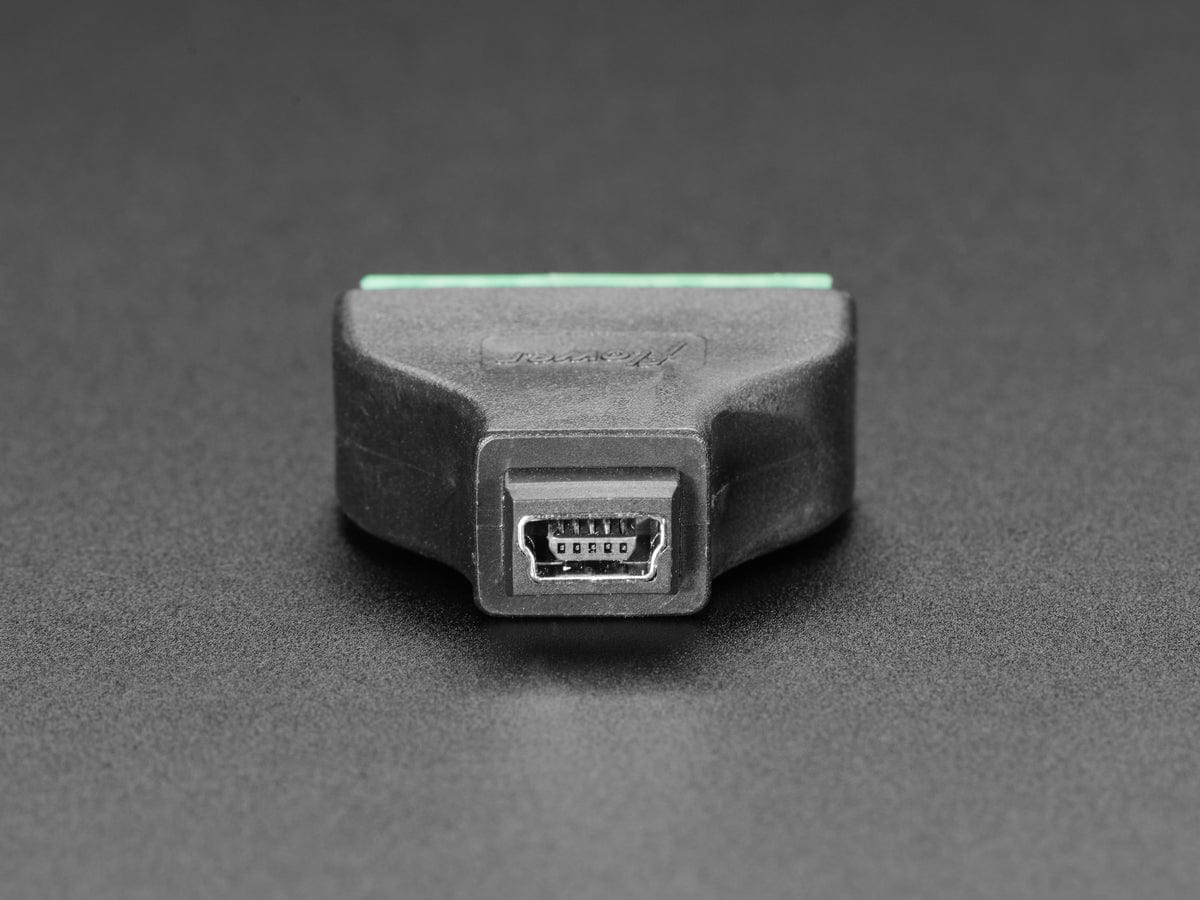

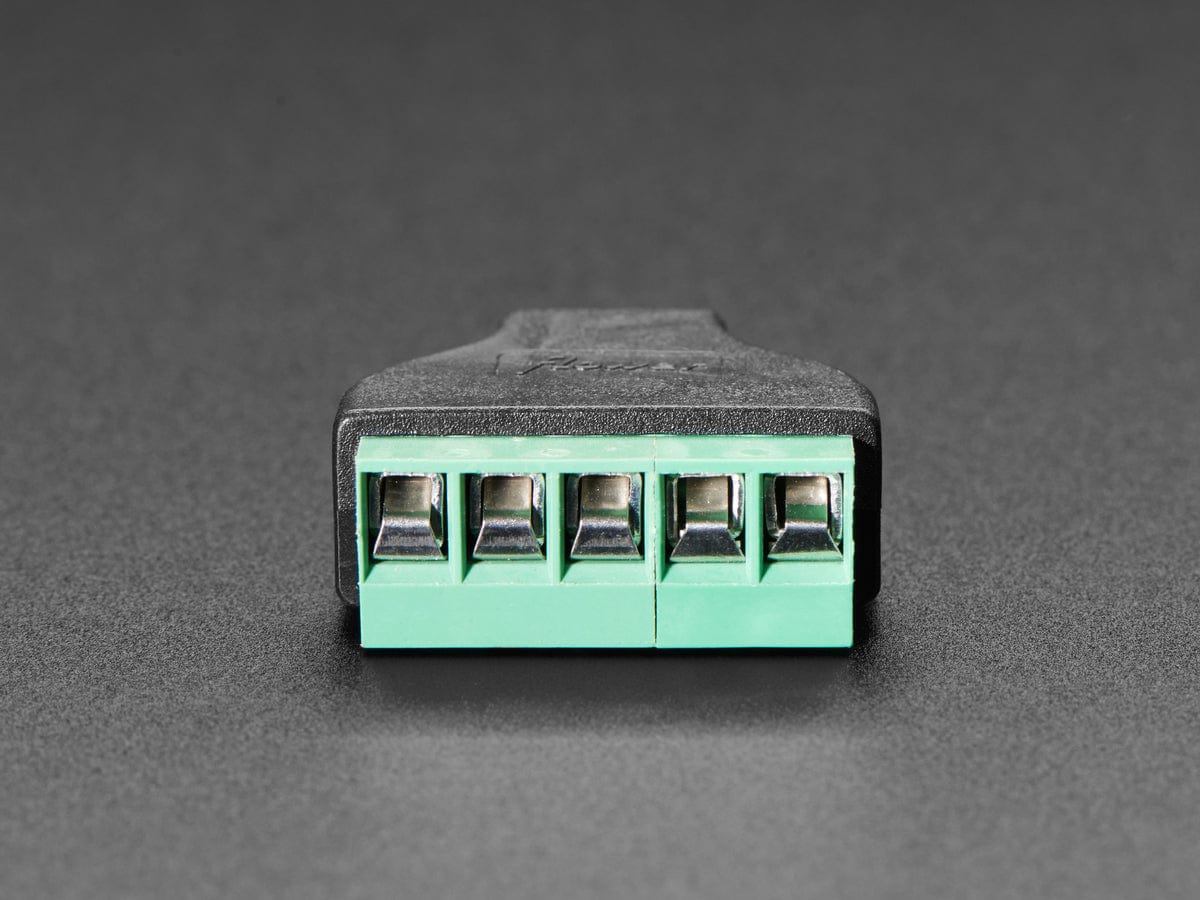

Make your next custom USB cable a breeze with a USB Mini B Female Socket to 5-pin Terminal Block. If you need to connect to a device with a mini USB plug or maybe make your own USB OTG device or custom cable of sorts - this adapter will come in very handy: no soldering required! Just use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten.

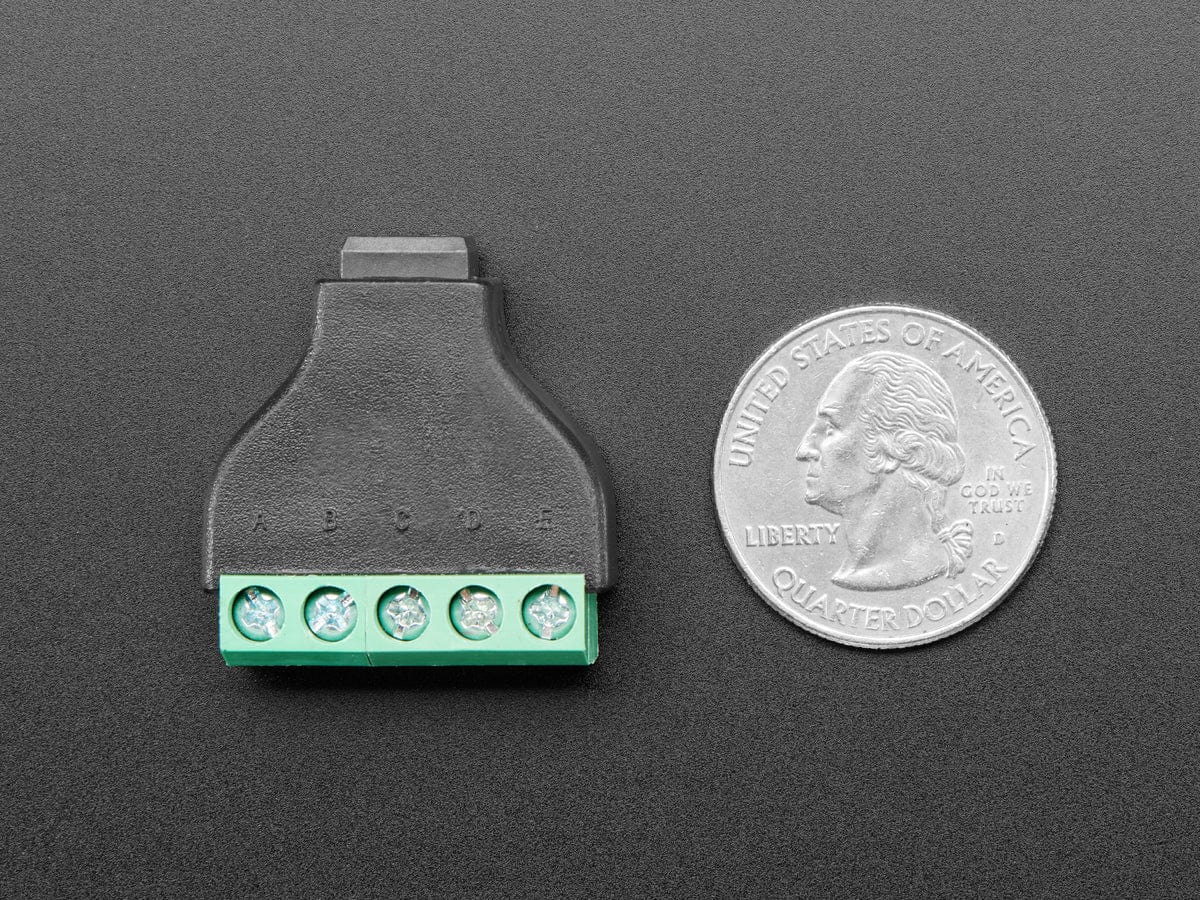

All the pins are labeled, which is really nice because we keep forgetting the order.

  • A – Pin 1 (V+)
  • B – Pin 2 (D-)
  • C – Pin 3 (D+)
  • D – Pin 4 (ID)
  • E – Pin 5 (GND)

We also carry the plug 'mating' version of this adapter.

Technical Details

Terminal Block Pitch: 5mm
Wire gauge: 26-16AWG

Product Dimensions: 30.0mm x 28.0mm x 10.5mm / 1.2" x 1.1" x 0.4"

Product Weight: 10.4g / 0.4oz
