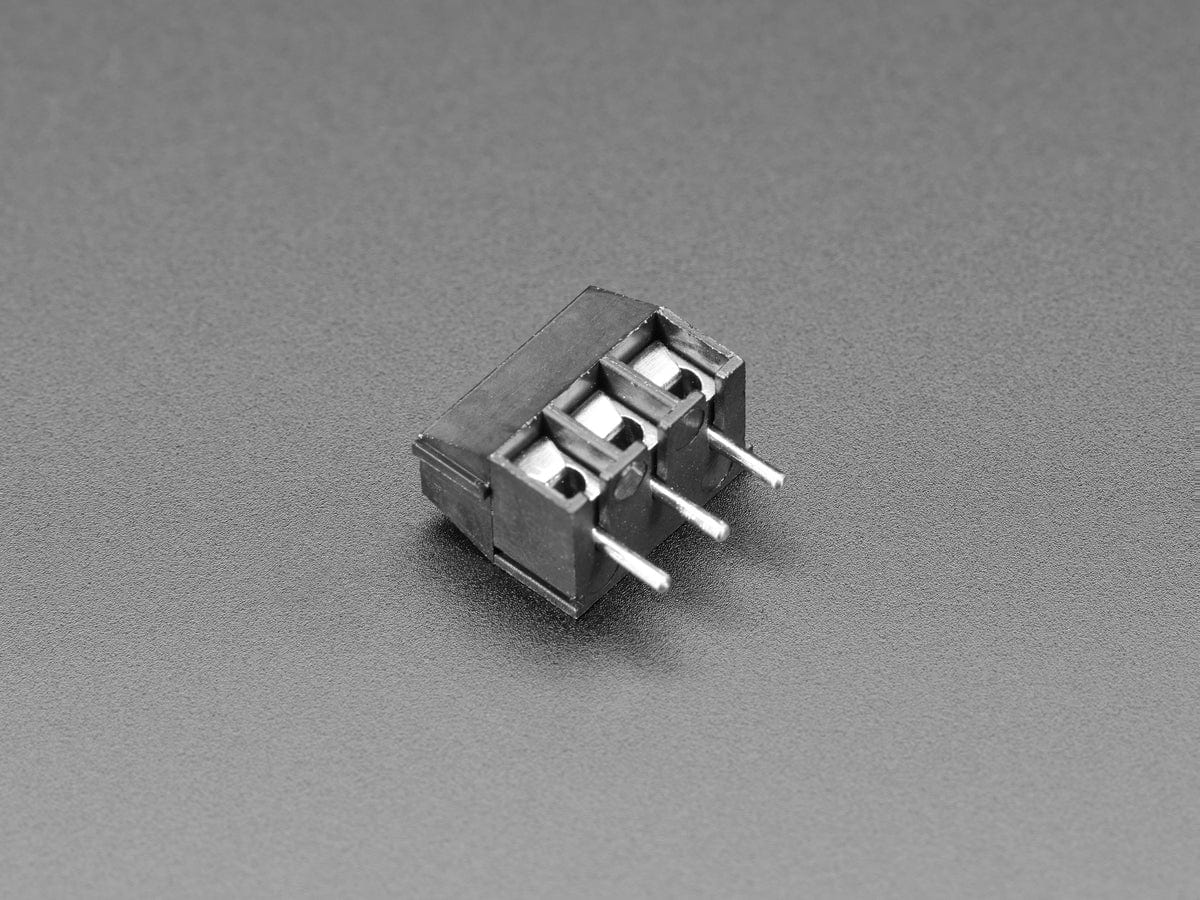

Terminal Block - 3-pin 3.5mm - pack of 5!

Price:
Sale price £3.90
incl. VAT
excl. VAT
Stock:
Sold out
Notify me

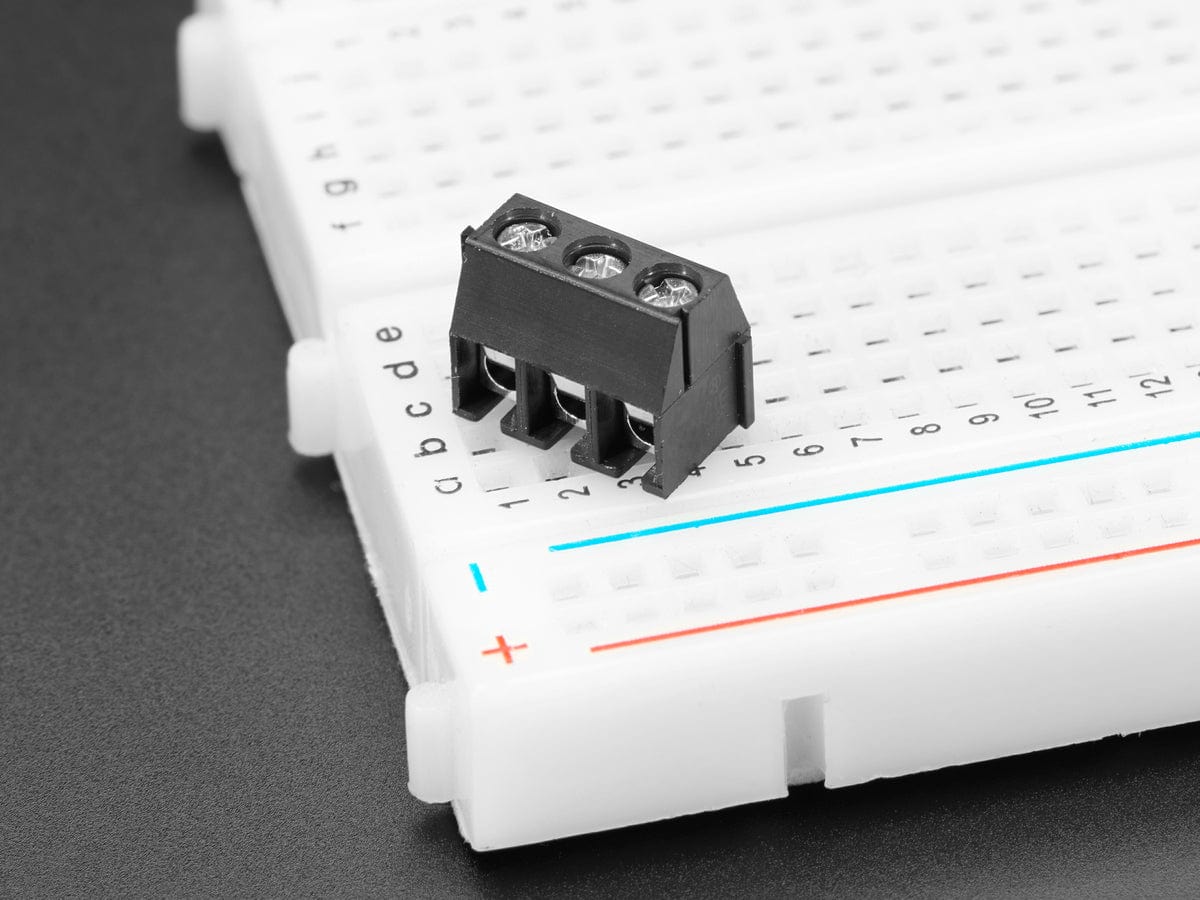

Nothing makes a project harder to maintain than a lot of loose wiring. That's why we like to use terminal blocks whenever making PCB-to-Wire connections. These particular 3.5mm terminal blocks are our favorite: big enough for a range of wire gauges, easy to adjust with a screwdriver, and not too chunky. The only down-side is that they do not fit into 2.5mm spaced holes (they're 3.5mm spaced) - but they do fit in most perf/proto-board if you rotate them diagonally (see photo above). They don't fit nicely into solderless breadboards.

These terminal blocks are designed to 'snap' together. You can attach as many 3-pin or 2-pin ones along as you'd like to make arbitrary length of terminal block.

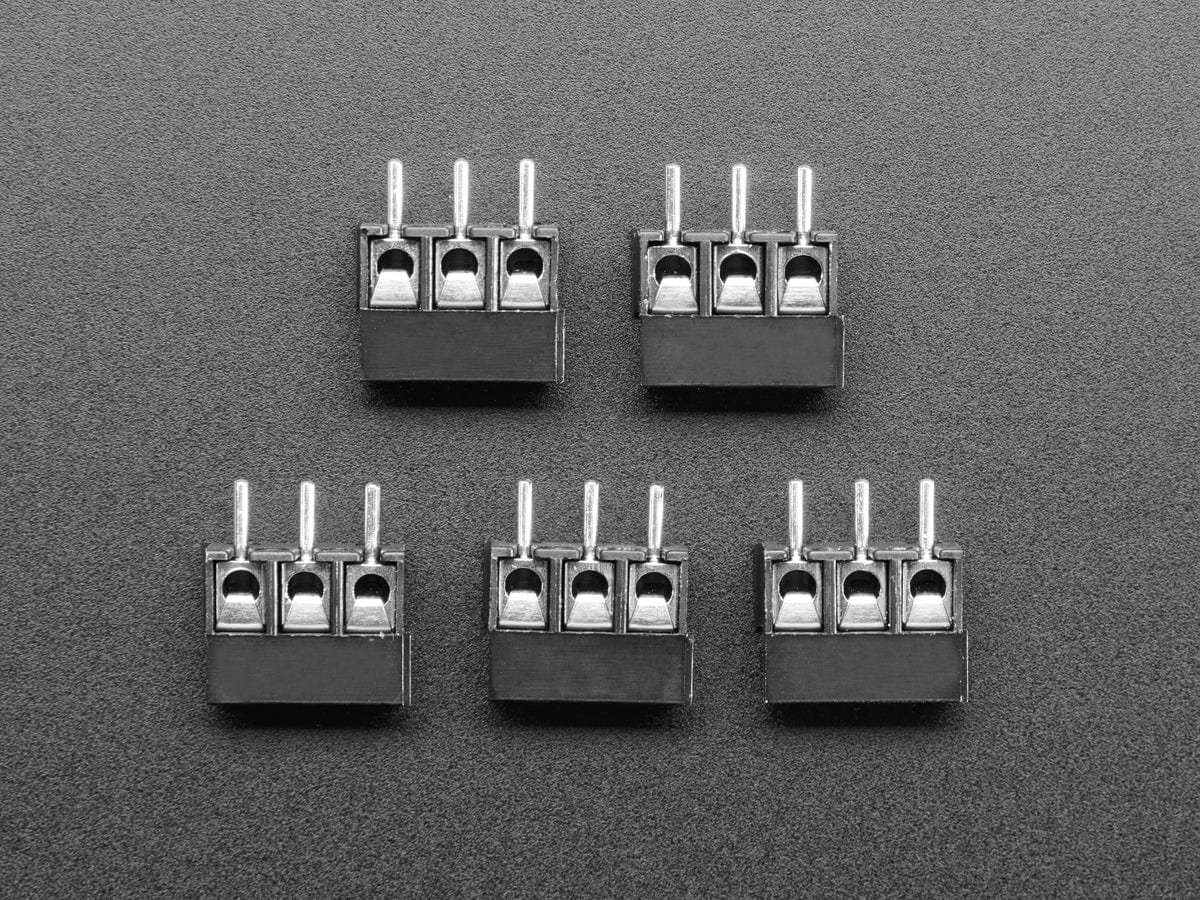

So useful, we sell them as a pack of 5! Each order will net you 5 pieces of 3-pin connectors. Check out our 5 x 2-pin connector pack as well.

Technical Details

Datasheet for 3.5mm terminal blocks
Wire gauge: 30-16AWG
Distance betwn terminal blocks: 3.5mm
