Mini OLED Unit 0.42" (72 x 40)

M5StackSKU: U166
£3.90
incl. VAT
excl. VAT
Only 15 units left

Awesome Extras

M5Stack CoreS3 ESP32S3 loT Development Kit - The Pi HutM5Stack CoreS3 ESP32S3 loT Development Kit - The Pi Hut
M5StackM5Stack CoreS3 ESP32S3 loT Development Kit
£57.90 incl. VAT excl. VAT
AtomS3 Lite ESP32S3 Dev Kit - The Pi HutAtomS3 Lite ESP32S3 Dev Kit - The Pi Hut
M5StackAtomS3 Lite ESP32-S3 Dev Kit
£7.70 incl. VAT excl. VAT
M5Stack M5StickC PLUS ESP32-PICO Mini IoT Development Kit - The Pi HutM5StickC PLUS ESP32-PICO Mini IoT Development Kit - The Pi Hut
M5StackM5Stack M5StickC PLUS ESP32-PICO Mini IoT Development Kit
£24 incl. VAT excl. VAT

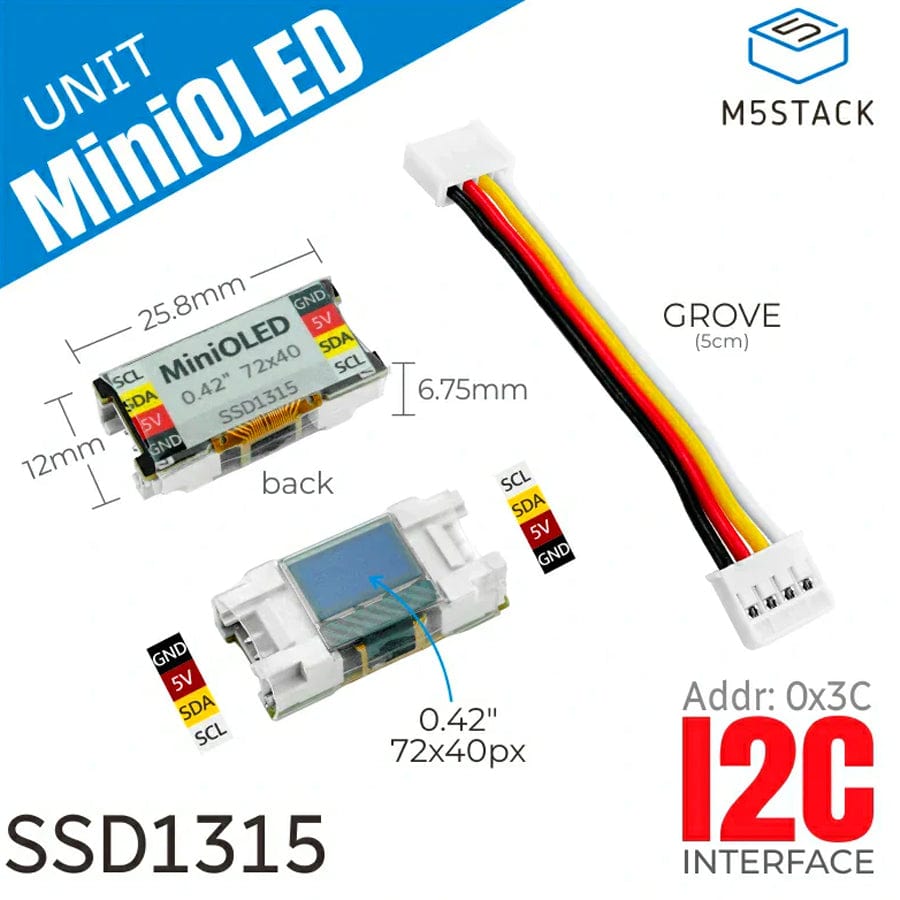

The Mini OLED display is a compact and versatile OLED screen unit that's perfect for use in a wide range of applications. With its 0.42" size and 72 x 40 resolution, this monochrome white display is ideal for embedding in various home products, smart wearable devices, portable devices, and industrial instruments.

Using an I2C interface, the Mini OLED communicates seamlessly with the M5 Controller (addr: 0x3C), making it easy to integrate into your existing projects. Whether you're building a smartwatch, a fitness tracker, or any other type of device, this OLED screen unit will provide you with the clear and crisp display you need to take your project to the next level.

Features

  • Monochrome Display (white）
  • I2C Address (0x3C）
  • SSD1315 Driver

Specifications

Resources Parameters
Screen Size 0.42" OLED
Resolution 72 x 40
Operating Voltage 3.3V
Control Chip SSD1315
Display Colour White
Display Area 9.196 x 5.18 (mm）
Pixel Pitch 0.128 x 0.13 (mm）
Operating Temperature 0-40°C
Perspective Direction Full view
Product Size 25.8 x 11 x 6.75mm
Package Size 136 x 92 x 13mm
Product Weight 2.1g
Package Weight 5.5g

Resources

Package Contents

  • 1x Mini OLED Unit
  • 1x GROVE Cable (5cm)
