M5StickC Mini JoyC HAT (STM32F030)

M5StackSKU: U156
£8.50
incl. VAT
excl. VAT
Only 9 units left

Awesome Extras

M5Stack M5StickC PLUS ESP32-PICO Mini IoT Development Kit - The Pi HutM5StickC PLUS ESP32-PICO Mini IoT Development Kit - The Pi Hut
M5StackM5Stack M5StickC PLUS ESP32-PICO Mini IoT Development Kit
£24 incl. VAT excl. VAT
USB-A to USB-C Cable - Black - The Pi Hut
The Pi HutUSB-A to USB-C Cable - Black
From £2.25 incl. VAT excl. VAT

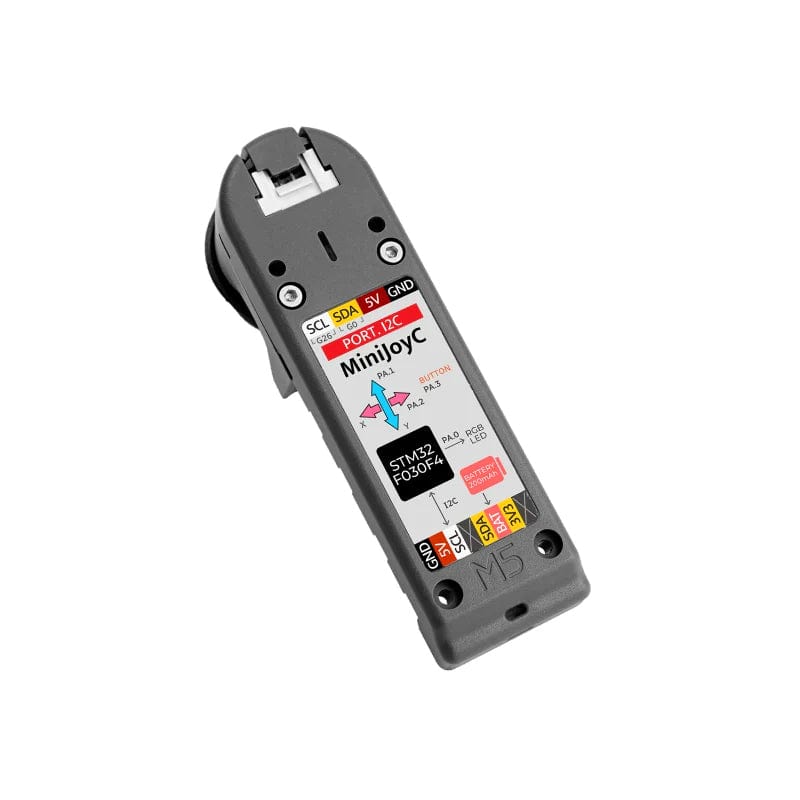

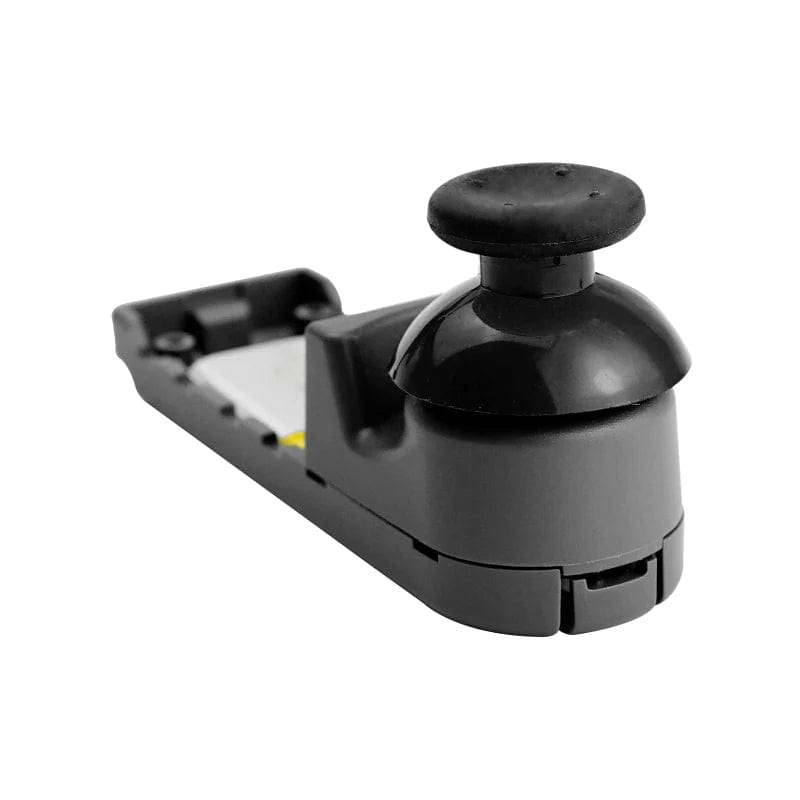

The Mini JoyC HAT is a joystick controller expansion base used with the M5StickC/C-CPlus, which has an XY-axis joystick and comes with an I2C HY2.0 standard interface to facilitate the expansion of other components.

This product can be used for remote control of drones, robot joints and more!

Note: M5StickC/C-CPlus is not included.

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?

Features

  • Total resistance up to 10KΩ
  • Centre button
  • SK6812 programmable RGB LED
  • 200mAh battery
  • HY2.0-4P interface

Specifications

Resources Parameters
MCU STM32F030F4P6
RGB SK6812-3535
support voltage 3.3V
Battery level 200mAh
Maximum angle of the joystick in all directions 23° max in all directions
Total resistance 10kΩ
Centre button yes
Product Size 81.05mm × 36mm × 24mm
Package Size 101mm × 27mm × 22mm
Product Weight 20.6g
Package Weight 31.2g

Resources

Package Contents

  • 1x MiniJoyC HAT
  • 1x lanyard
  • 1x 2.0mm hex key
  • 2x M2*8mm screws (cup head, self-tapping)

M5StickC/C-CPlus is not included
