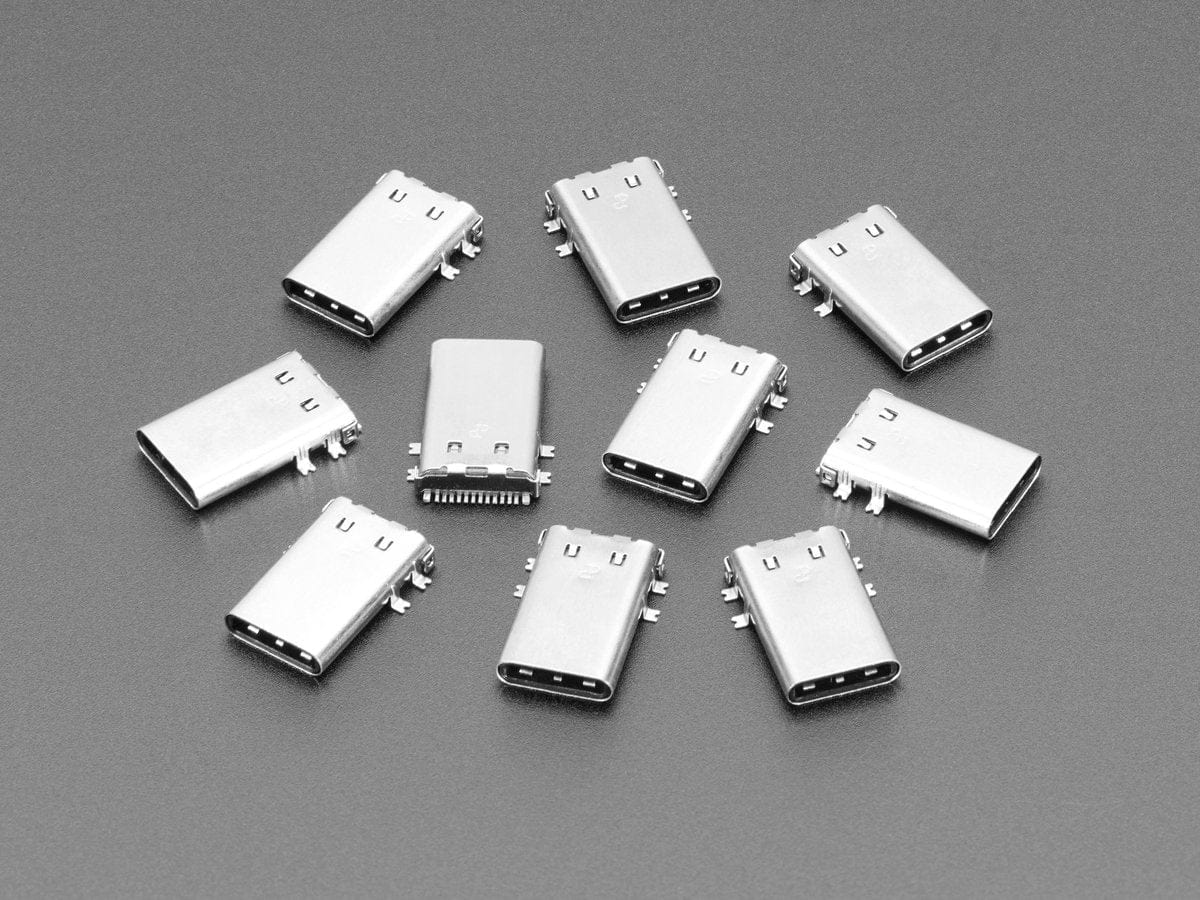

Edge-Launch USB Type C SMT Plug Connector - Pack of 10

Name: Edge-Launch USB Type C SMT Plug Connector - Pack of 10
Brand: The Pi Hut
SKU: ADA4932
Price: 9.90 GBP
Availability: InStock

The Pi HutSKU: ADA4932

£9.90

incl. VAT

excl. VAT

Only 2 units left

Awesome Extras

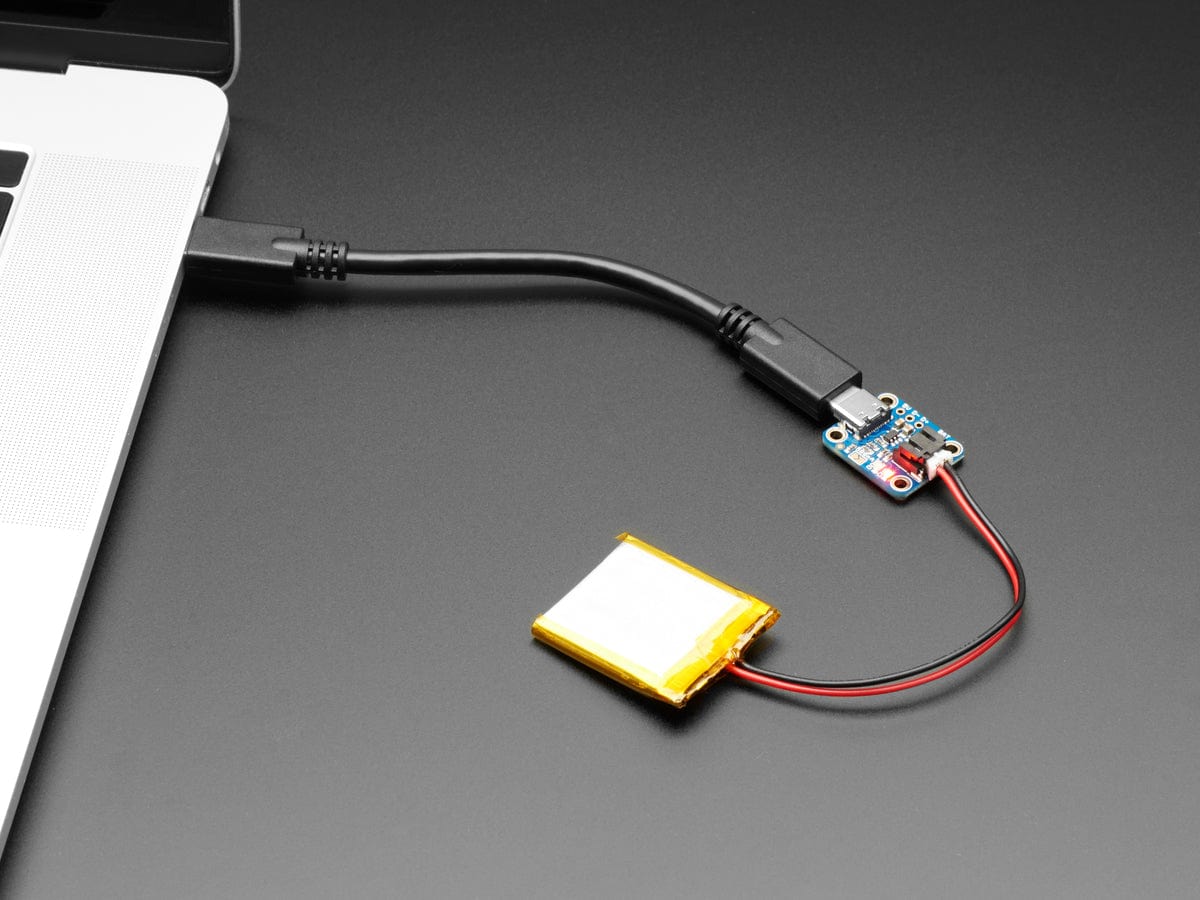

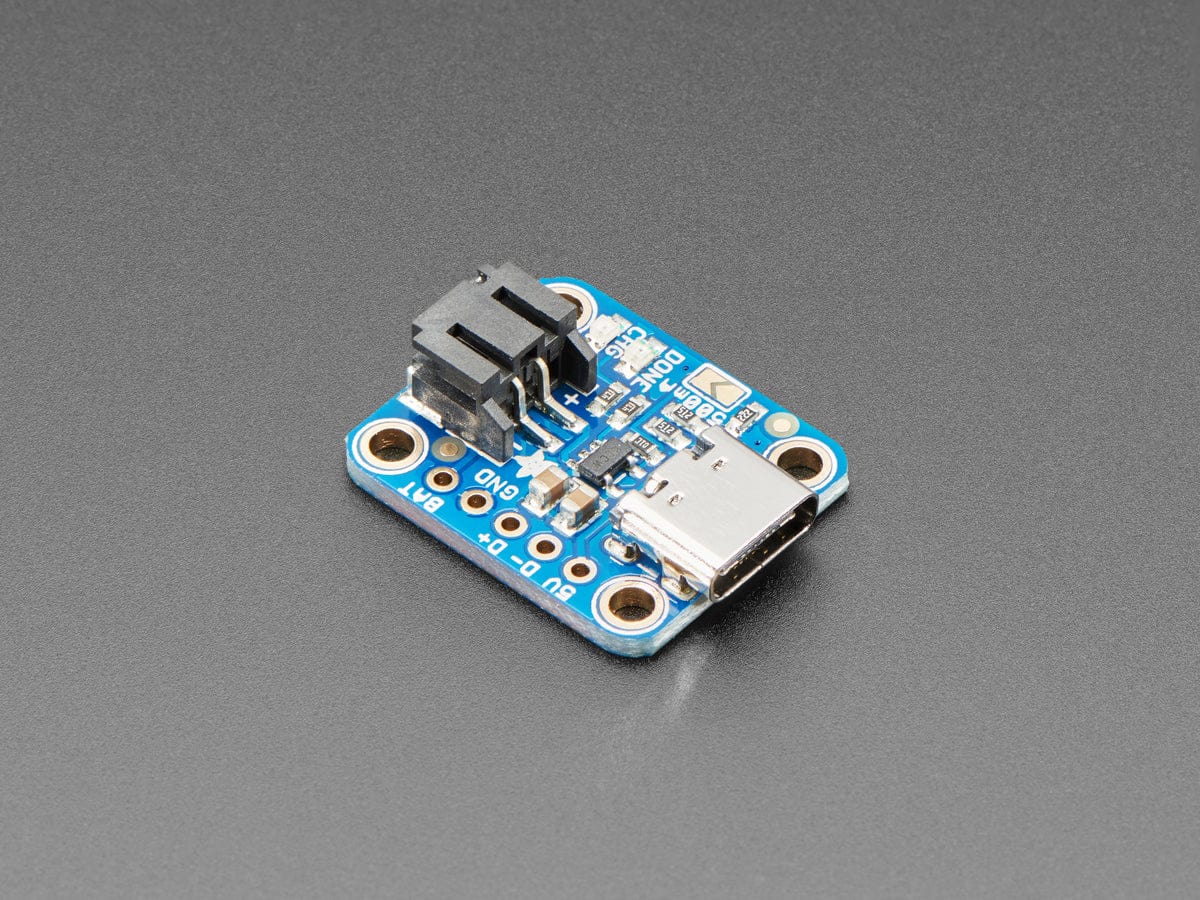

Adafruit Micro-Lipo Charger for LiPoly Batt with USB Type C Jack - The Pi Hut

Adafruit Adafruit Micro-Lipo Charger for LiPoly Batt with USB Type C Jack

£5.70 incl. VAT excl. VAT

Notify me

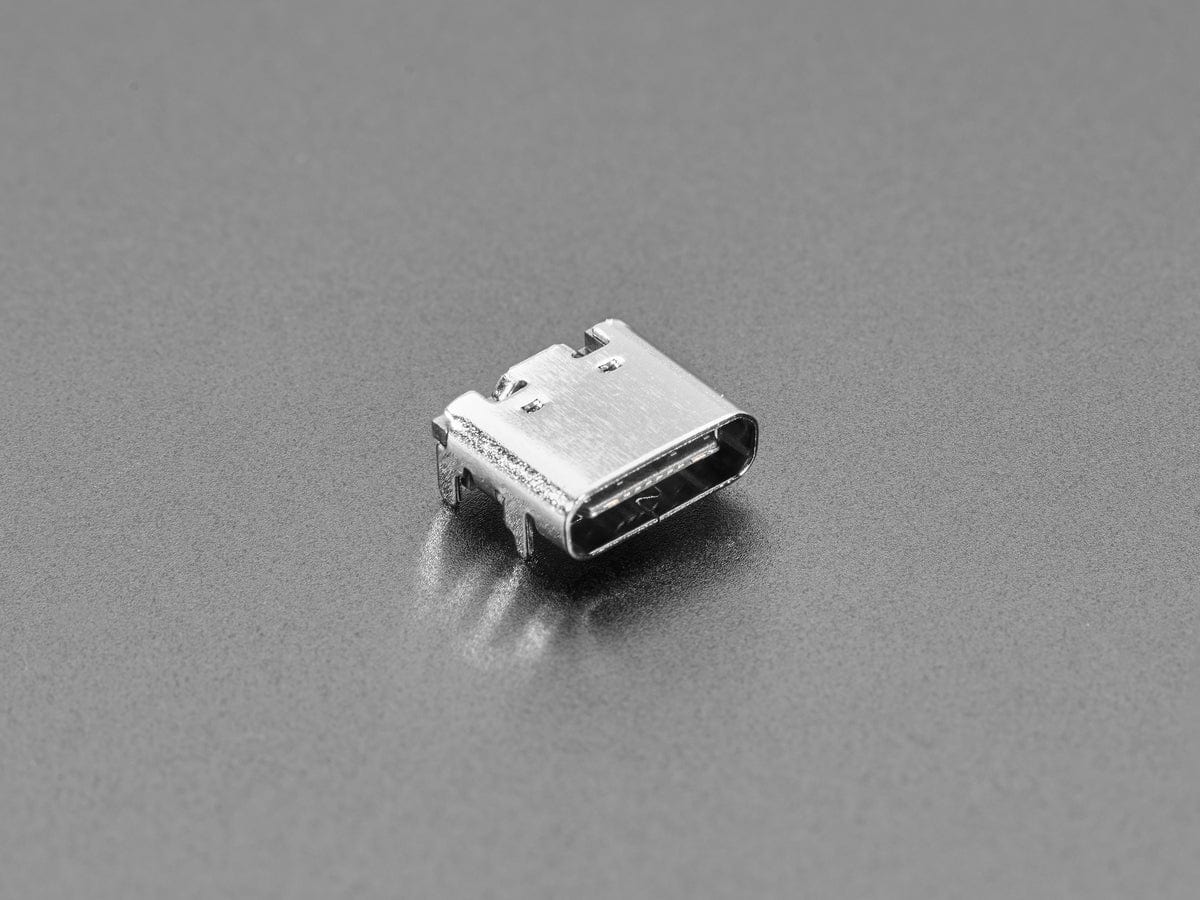

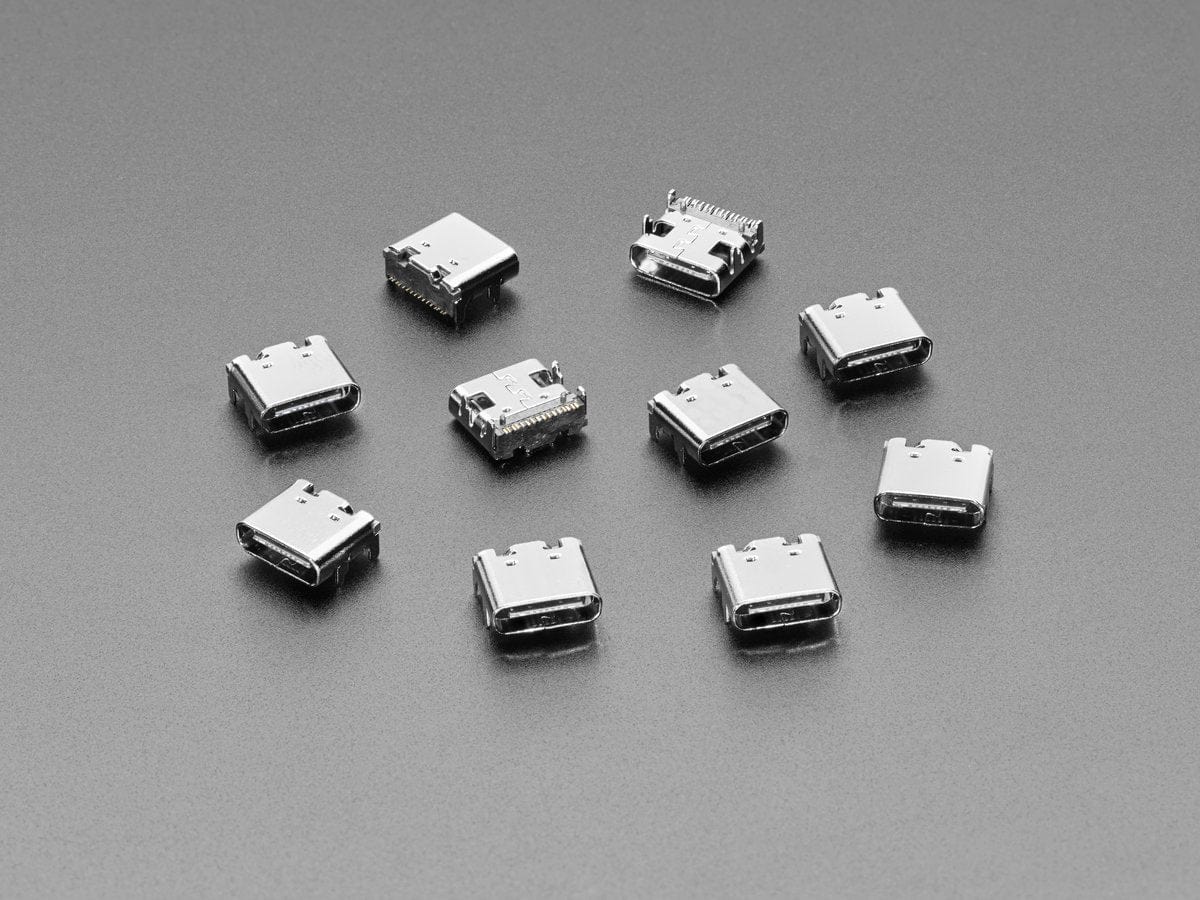

USB Type C SMT / THM Jack Connector - Pack of 10 - The Pi Hut

The Pi Hut USB Type C SMT / THM Jack Connector - Pack of 10

£8.90 incl. VAT excl. VAT

Adafruit USB Type C Breakout Board - Downstream Connection - The Pi Hut

Adafruit Adafruit USB Type C Breakout Board - Downstream Connection

£2.90 incl. VAT excl. VAT

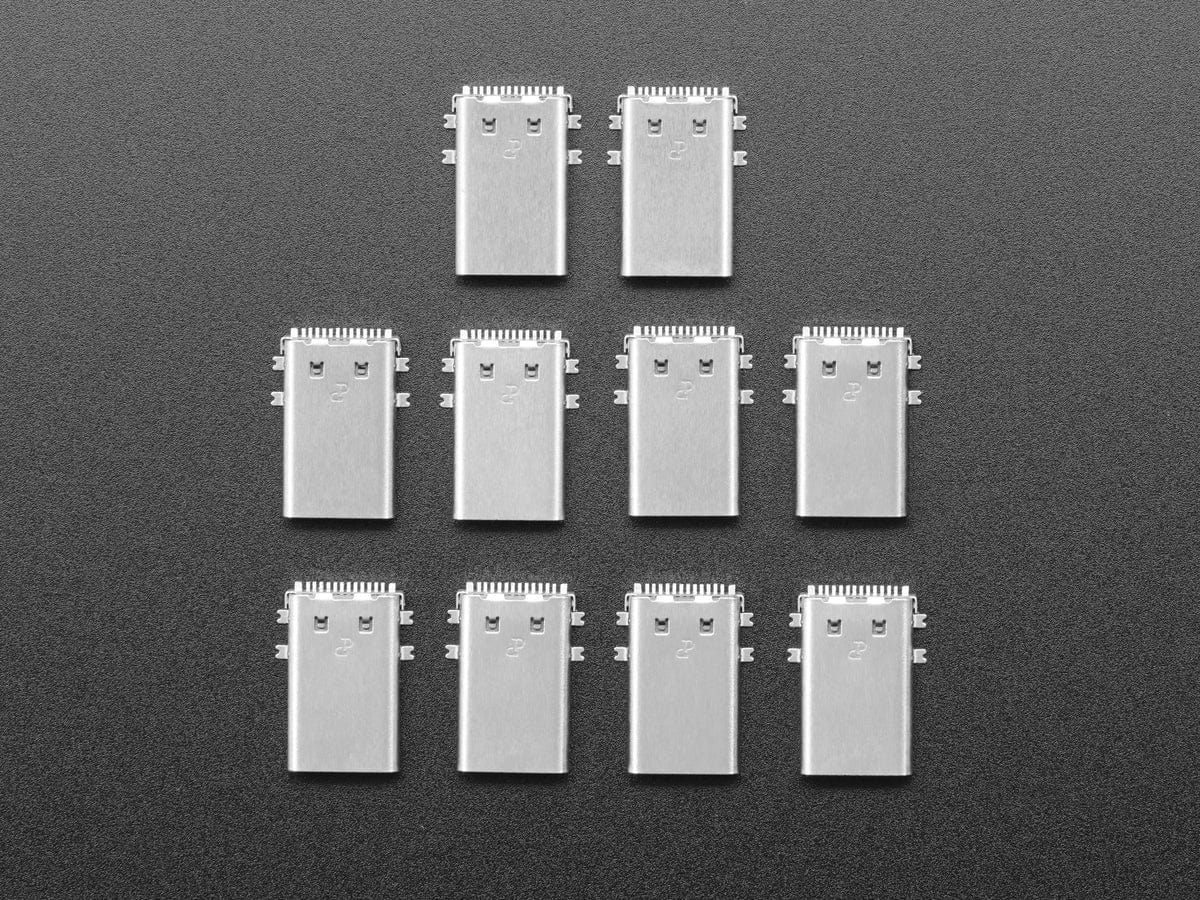

If you're a DIY enthusiast who'd like to update your project's connection to the latest USB standard, here is a 10-pack of USB C plug connectors! They can be pick-and-placed onto your design, and then plugged directly into a USB C port.

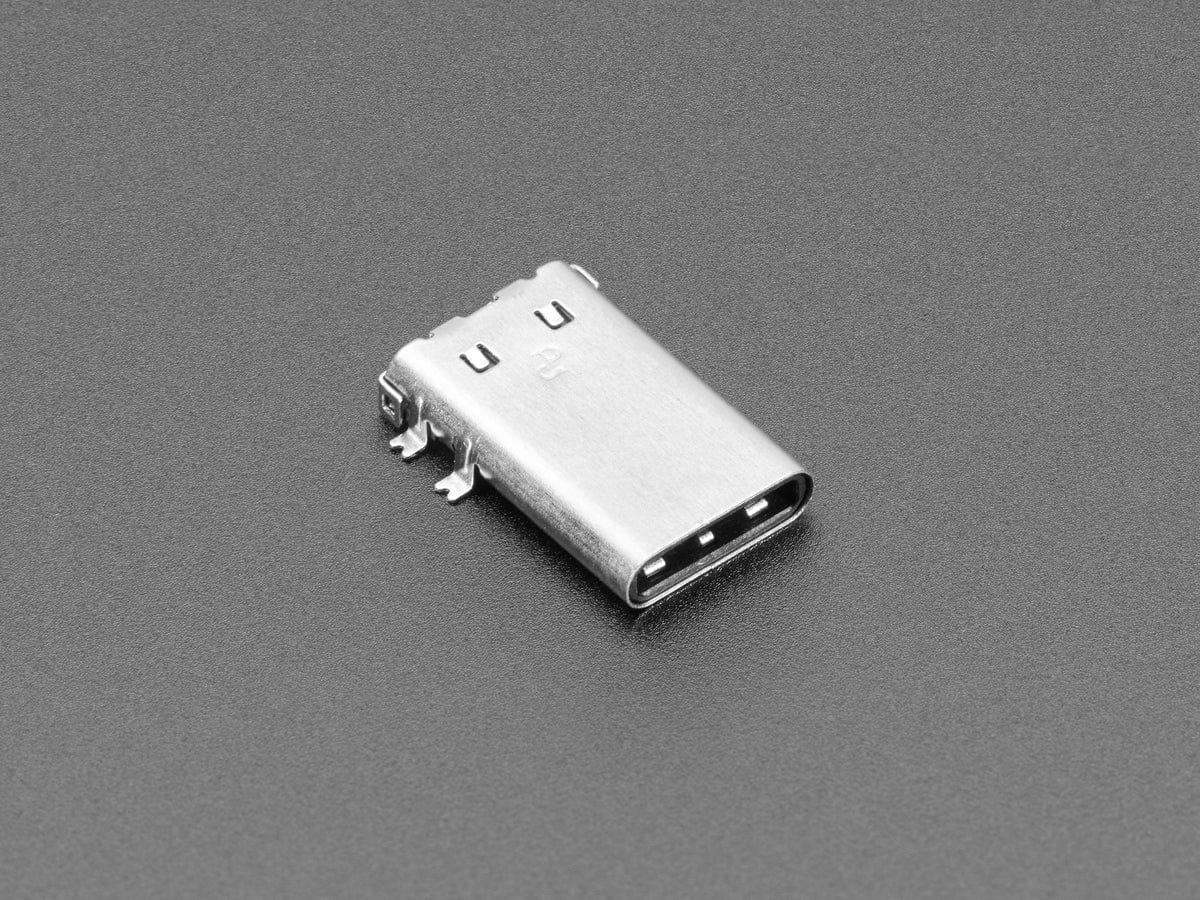

For mechanical connection, there are four SMT tabs - use plenty of solder to keep these secure, they aren't as good as through-hole style tabs, but we were not able to find this style of connector with THM tabs so it's the best there is.

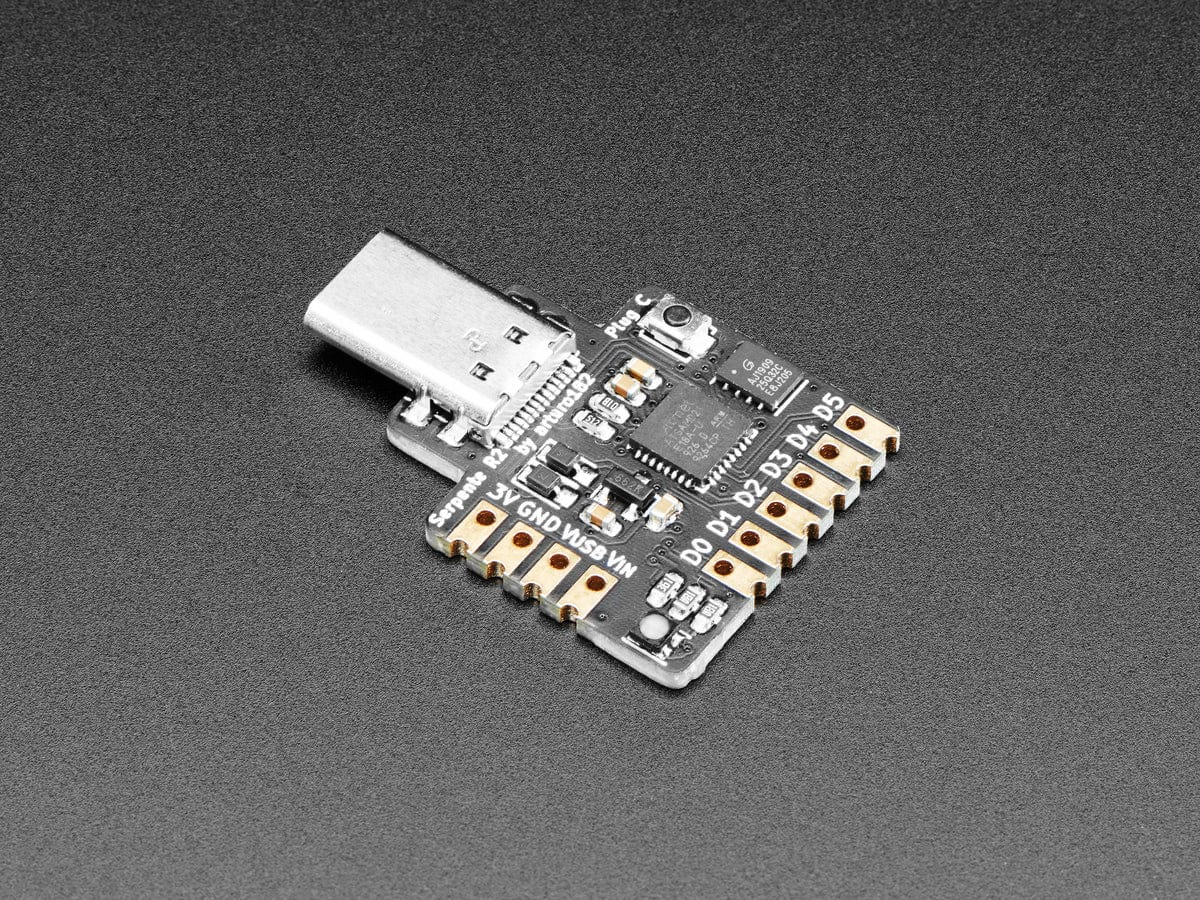

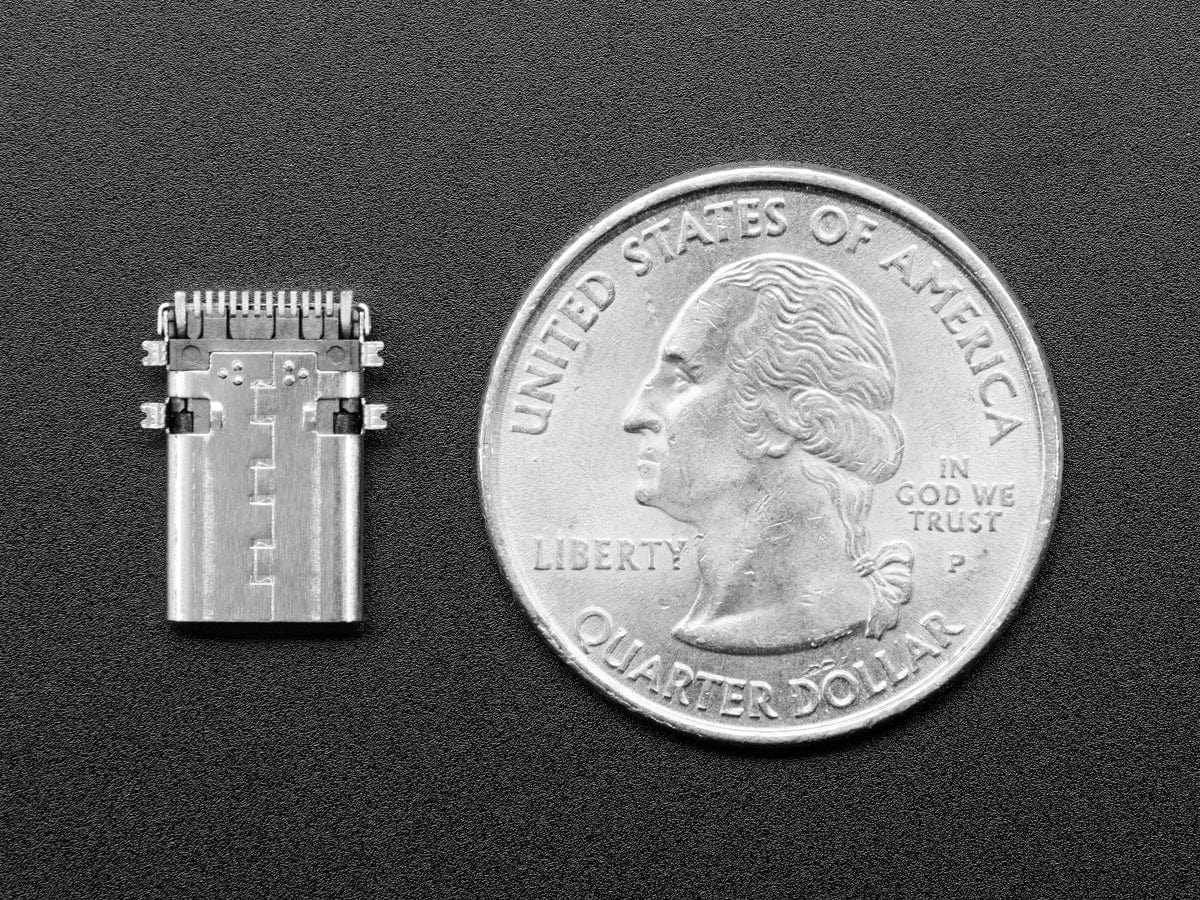

We like this connector for its low profile, reasonable number of pins, and because it makes for adorable compact plug-in designs the way it hugs the edge of a PCB and 'launches' off. You can see how it ends up looking by checking our the Serpente board, which has a near-identical connector.

If you need a matching type C jack, we also carry this USB C jack connector pack, which we use in our STM32 Feather, USB C Downstream Breakout, and the new Micro Lipo Charger for USB C.
